Primary hydrocyclone feed tank pump

As its hydrocyclone feed pump, client has bellow requirements. Also they sent us the technical data information of the slurry pumped.

SLNO	Description	Primary hydrocyclone feed tank pump
1	pump slno	3
2	pump location	out door
3	Mounting orientation (H/V)(Horizontal/Vertical)	H
4	Specific gravity of slurry	1.215
5	Viscosity at pump	0.01 Pa.S
6	Slurry concentration	30 wt%
7	Maximum solid particle size	150 mesh (140 micron)
8	Normal solid particle size,d50	325 mesh(43 micron)
9	Hardness of particle	5-7 (Mho scale)
10	Chloride concentration	20,000 ppm (max)
11	Slurry to be handled	Gypsum slurry
12	SiO2 concentration	20.7g/l
13	PH	4-8
14	Minimum & maximum liquid level in the tank (in m)	1.2 to 6.1
15	Operating temperature range	10-65 deg C
16	Head of the pump (in meter of slurry column )	65
17	Capacity of the Pump(in m3/hr)	210
18	Number of pump	2 nos.
19	Working and standby	(1W + 1S)
20	Discharge orientation	Vertical up
21	Duty condition (continous /intermittent	Cont
22	Power loading for bid evaluation	Applicable
23	Flange standard	B16.5 class 150
24	Mechanical seal required (Duplex & SiC/SiC)- vendor also to confirm flushless wherever called	Flushless

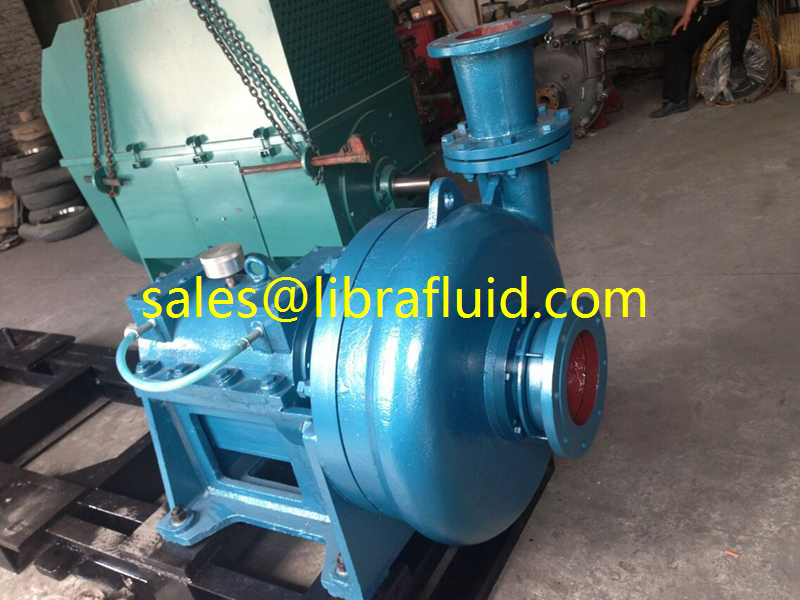

After check full data and requirements, our engineer selected the bellow pump for them

Head(m)	65
Flow(m3/h)	210
Model	100D-A45
Installation	Horizontal
Running speed	1480
Eff.	57%
Slurry density	1.215
Shaft power(KW)	79.24
Motor	90KW-4
Motor poles	4
Pump casing	ASTM 532 Grade IIIA
Impeller	ASTM 532 Grade IIIA
Shaft sleeve	CD5MCu
Main drive shaft	SS2205
Inlet dia of pump	150
outlet dia of pump(mm)	100
Impeller diameter(mm)	450
bearing of pump	SKF/FAG
Bearing cooling	Oil
Motor Brand	Siemens
Base plate	SS304

Compared with others solutions from other sluppliers, they prefer our solution. Thanks for your trust and wish we will help save running cost in future for you.
